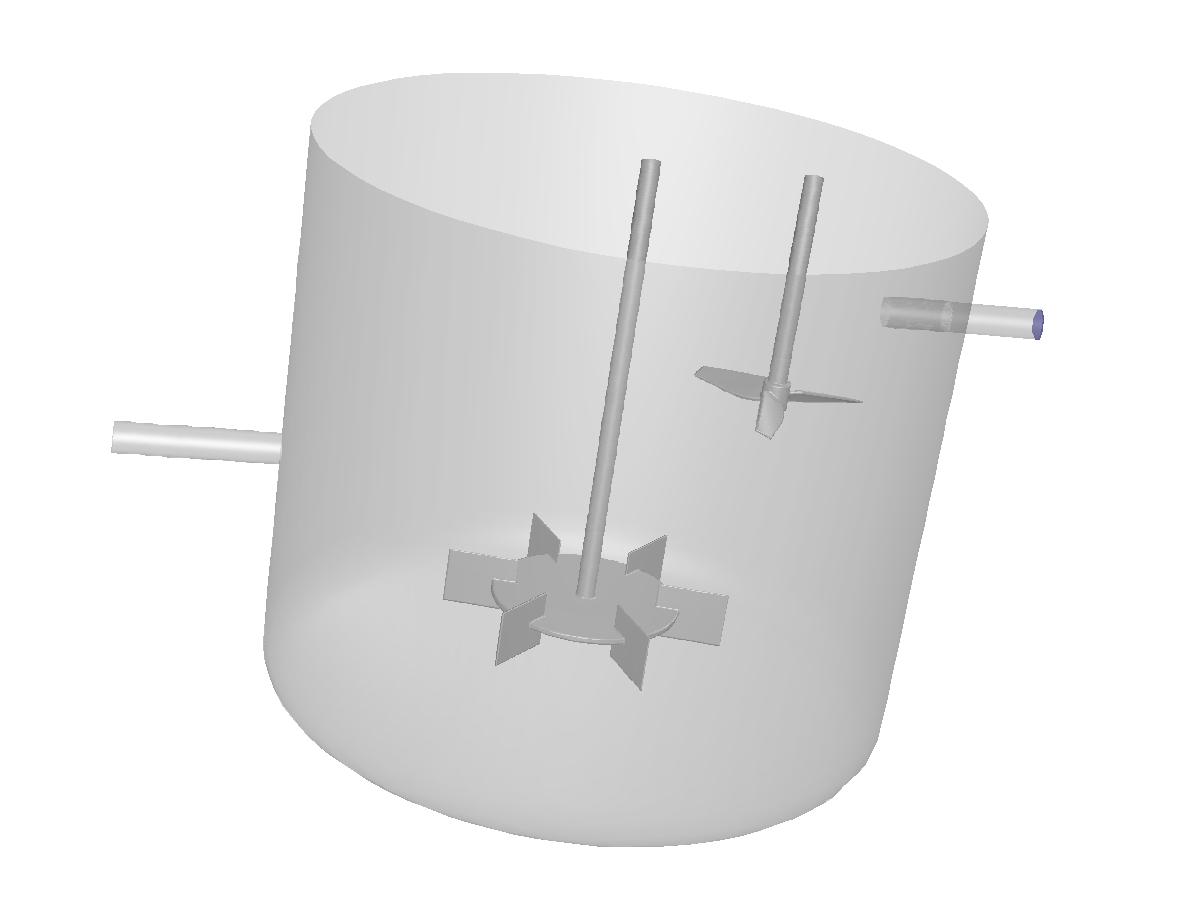

Mixing Vessel

The use of CFD to predict and understand the flow-dependent processes in mixing tank can enhance product quality.
The CFD simulations will allow to determine the key mixing parameters, such as blending time, circulation, and power number in any configuration of impellers and mixing conditions.

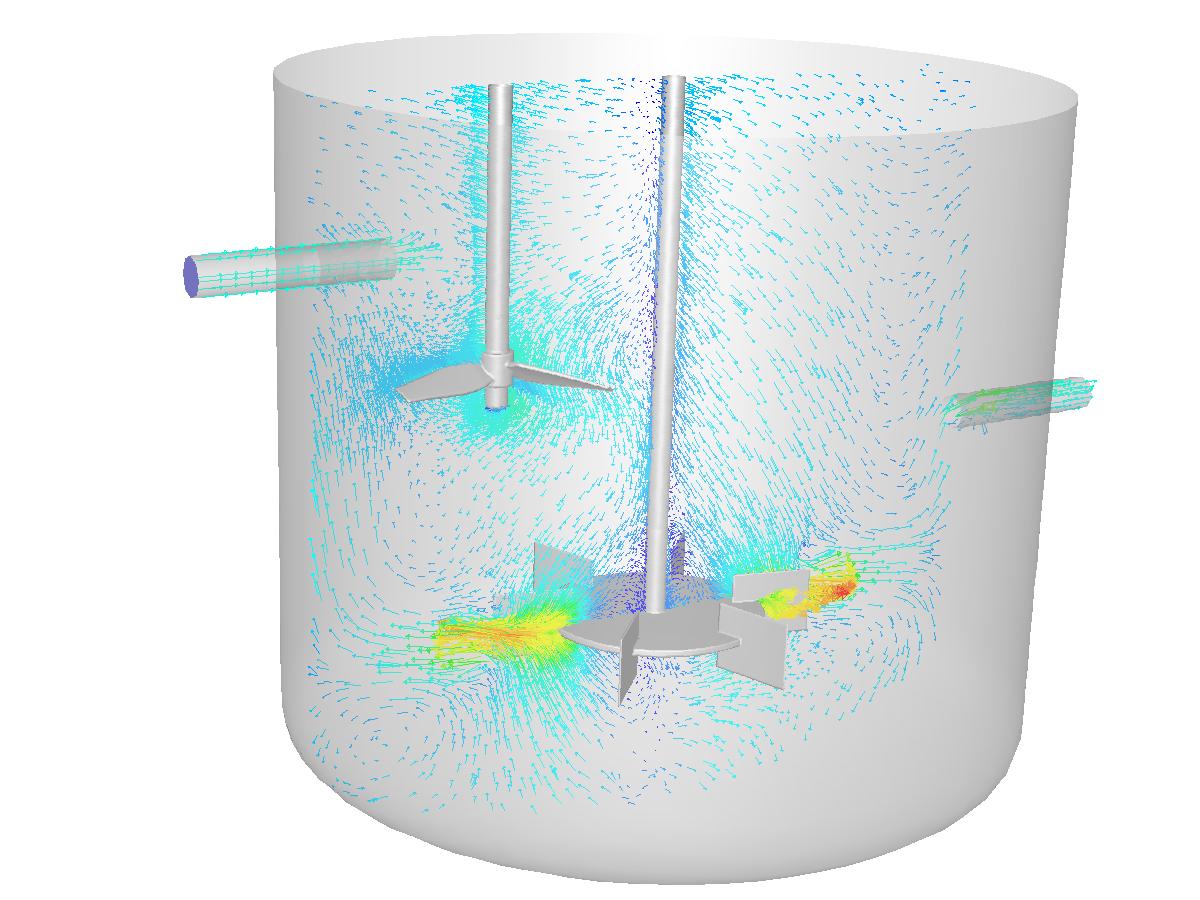

Mixing Vessel with particle tracking

Particles are used here to highlight the flow pattern into the mixing vessel.

Numerical Outputs from simulations

  • Velocity vectors
  • Stream lines
  • Pathlines
  • Contour plots on arbitrary cut planes of any flow variable (velocity components, temperature, turbulence, shear stresses, vorticity, ...)
